1T 2200Lb 220V/380V Electric Hoist Crane Lift Overhead Garage Winch Chain hoist for Factories/Warehouses/Buildings Cargo Lifting
1. Shipping list
1 set | Electric hoist |
2. Specifications & Feature (if you need 0.5T, please feel free to contact us.)
model | HHBB 0.5-1S | HHBB 0.5-1S | HHBB1-1S | HHBB1-1S |
Rated load | 0.5T | 0.5T | 1T | 1T |
Package dimensions | 52*34*45cm | 52*34*45cm | 59*35*50cm | 59*35*50cm |
Net weight / gross weight | 37KG/43KG | 37KG/43KG | 55KG/60KG | 55KG/60KG |
power | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
Lifting speed | 7.2M/min | 7.2M/min | 7.2M/min | 7.2M/min |
Operating Voltage | 220V-Two-phase electricity | 380V-3-phase electricity | 220V-2-phase electricity | 380V-3-phase electricity |
Control voltage | 36V | 36V | 36V | 36V |
Lifting height | 3m | 3m | 3m | 3m |
Rotating speed | 1440r/min | 1440r/min | 1440r/min | 1440r/min |
3. Advantage
1. | Improve work efficiency and reduce production costs. |
2. | Aluminum shell |
3. | Pound magnetic brake |
4. | G80 chain |
5. | Forged hook |
6. | Chain protection cover, push button switch |
4. Benefits for you
(1) Using this machine, it is possible to lift and lift heavy objects, which is safe, stable, and fast.
(2) Aluminum alloy casing, anti-rust, anti-corrosion, not easy to deform, long service life
(3) Pound magnetic brake, you can brake when the power is cut off again to ensure the safety and stability of the hoist.
(4) G80 chain, using manganese steel material, heat treatment, corrosion-resistant and wear-resistant, safer to use.
(5) Forged hook; after hot forging, the strength is good, it is not easy to break, and the service life is long.
(6) Pure copper core motor with strong power and less heat dissipation.
(7) Chain protection cover: Prevent the chain from falling down or sticking with debris. The push-button switch is more convenient.
5. Application area
Suitable for factories, warehouses, buildings, buildings, cargo lifting, railway construction, industrial and mining enterprises, etc.

6. Technical Support
Do not exceed the rated load when using the machine to lift heavy objects.
All Products from the factory will be provided for one year warranty after sales and lifetime technical support.

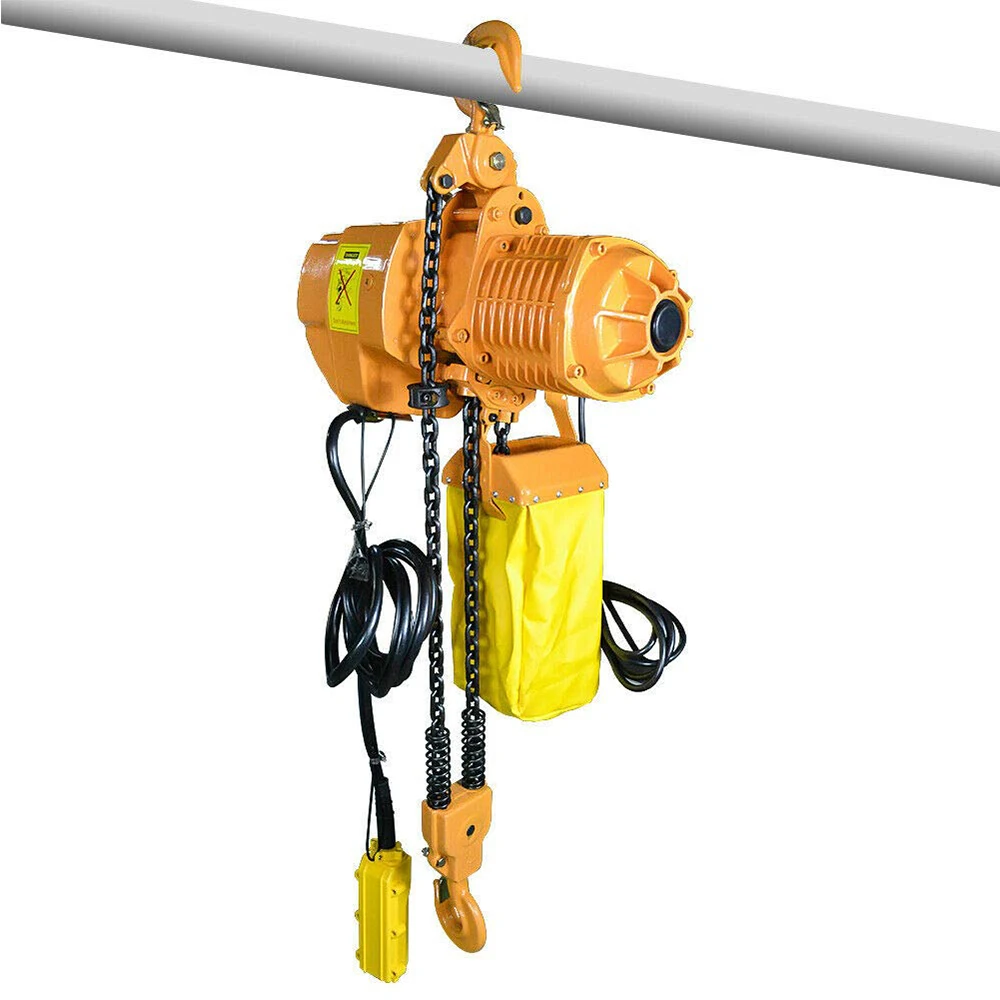

7. Picture show
model | HHBB 0.5-1S | HHBB 0.5-1S | HHBB1-1S | HHBB1-1S |
Rated load | 0.5T | 0.5T | 1T | 1T |
Package dimensions | 52*34*45cm | 52*34*45cm | 59*35*50cm | 59*35*50cm |
Net weight / gross weight | 37KG/43KG | 37KG/43KG | 55KG/60KG | 55KG/60KG |
power | 0.75KW | 0.75KW | 1.5KW | 1.5KW |
Lifting speed | 7.2M/min | 7.2M/min | 7.2M/min | 7.2M/min |
Operating Voltage | 220V-Two-phase electricity | 380V-3-phase electricity | 220VTwo-phase electricity | 380V-3-phase electricity |
Control voltage | 36V | 36V | 36V | 36V |
Lifting height | 3m | 3m | 3m | 3m |
Rotating speed | 1440r/min | 1440r/min | 1440r/min | 1440r/min |
